Automatic Antenna Polarization Switching Device

Ideal for Antenna Characteristic Measurements, Immunity, and Emission Testing
A simple positioner capable of switching between horizontal and vertical antenna polarization.

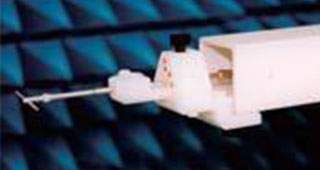

Automatic Antenna Polarization Switching Device

Key Features

･Low Electromagnetic Interference Design: Utilizes resin materials and a compact design to minimize the impact of electromagnetic wave reflection.
･High Precision Positioning: Polarization switching accuracy of ±0.3°.
･Conditions: Antenna positioned within 1m of the pole center, at the center of rotation, and antenna mass of 7kg or less.
･Fast Operation: Antenna polarization switching time is approximately 6 seconds.
･Capacity: Supports antenna loads up to 7kg.
･Portable & User-Friendly: Lightweight design equipped with casters for easy transport and movement.
･Advanced Control: Supports GPIB control and uses optical fiber cables for signal transmission.
･Adjustable Height: Manual height adjustment (200mm range with 25mm pitch).

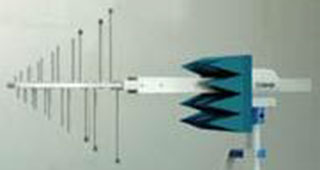

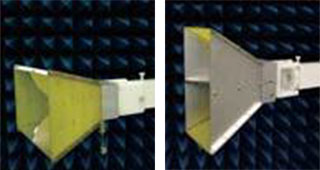

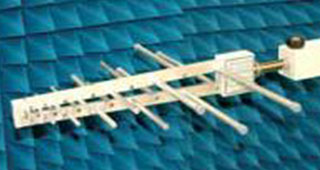

･Customization: Optional adapters for various antenna types are available. A 1.0m height version can be manufactured upon special request.

Specifications

3211A1/0 - Polarization Switching Pole

Antenna Height Position	1500mm ± 100mm (Adjustable in 25mm pitch)
Switching Speed	6 seconds
Position Detection	Optical Sensor Detection
Polarization Accuracy	± 0.3° (See conditions in "Key Features")
Pole / Stay Material	FRP (Fiber Reinforced Plastic) Pole: 63mm round Horizontal Stay: 60mm square pipe
Allowable Antenna Weight	7kg or less (Within 1m from the center of the pole)
Stay Length	1500mm
Weight	23kg

3111HA1/0 - Position Controller

LED display	GPIB ADDRESS (Positioner Operation, Error Display)
Interface	GPIB (Option: TRIGGER output)
Features	･ Manual Start/Stop Operation ･ Polarization Switching/Positioner Operation Display ･ Operation Error Detection [Encoder Reverse Start, Hard Limit, Optical Communication, No Positioner Detected] ･ GPIB Address Setting/Master Reset Function
Power Supply	AC100V 50/60Hz
Size (mm)	217(W) x 97(H) x 210(D)
Weight	2.1kg
