Desktop Low-Profile EMI/EMC Turntable

Desktop Low-Profile EMI/EMC Turntable

3352BV1/0-1.5
3352CV1/0-2.0

Inquiry

Request for Quotation

Datasheet

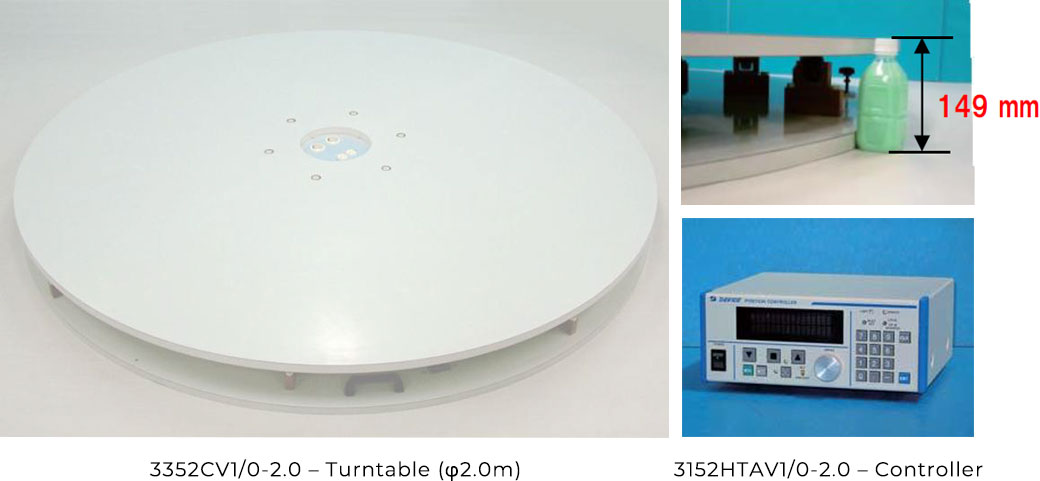

Desktop Low-Profile EMI/EMC Turntable

Main Features
  • ■ 300 kg capacity and only 149mm thin
  • ■ Stable rotation even when heavy measurement
    objects are placed on the edge of the plate
  • ■ Thanks to its rollers, it's easy to move
  • ･Optional power outlet available (100V or 200V)
  • ･Low noise drive unit for low noise operation
  • ･Rotation speed: 0.3 - 3.0 rpm
  • ･Resolution: 0.1°
  • ･Non-metalic material for low reflection
  • ･Available in 1.5m and 2.0m lengths

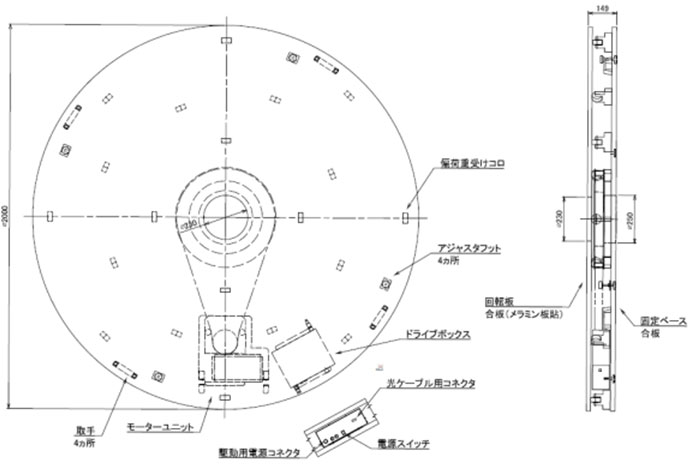

Appearance Drawing and Specifications

3352BV1/0-1.5 3352CV1/0-2.0

Desktop Low-Profile EMI/EMC Turntable

Diameter 1500/2000 mm
Rotation Speed 0.3 – 3 rpm (Variable-Speed, Belt Drive)
Material Plywood
Maximum Load Up to 300 kg
Detection Encoder Detection
Resolution 0.1°(Belt Drive)
Drive Power Power Supply: AC100V, up to 1A
Weight Φ1500 – 85 kg / Φ2000 – 140 kg
Standard Accessories One Optical Cable and One Power Cable Included

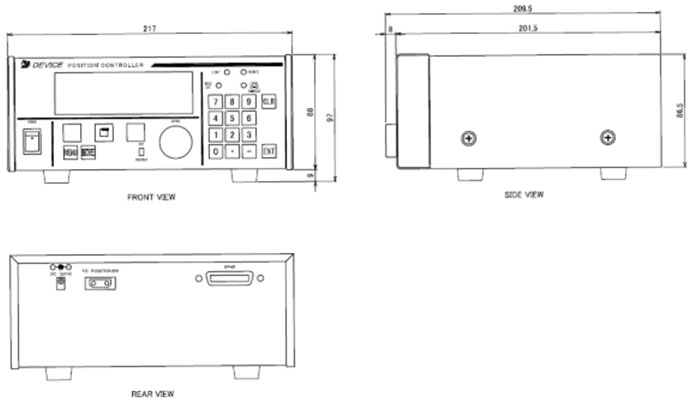

3152HTAV1/0-1.5 3152HTAV1/2.0

Desktop Low-Profile EMI/EMC Turntable

Display Product Name, Configuration Settings,
Current Position, Status
Messages, Speed, Unit
Display Unit deg (Resolution: 0.1)
Input/Output GPIB (TRIGGER is optional)
Features
  • ･ Manual Start/Stop/Direction Operation
  • ･ LIMIT Function (user-definable soft limits)
  • ･ Speed Control
  • ･ Position display Switching
  • ･ Protection Features
  • ･ Operation Error Detection (control cable disconnection, inactivity error, and reverse-start error)
  • ･ GPIB ADDRESS Setup
  • ･ Master Reset
Control Optical Control
Dimensions / Weight 217(W) x 97(H) x 210(D) mm / 21kg
Power Supply AC100V 1A
Standard Accessories One AC Adapter

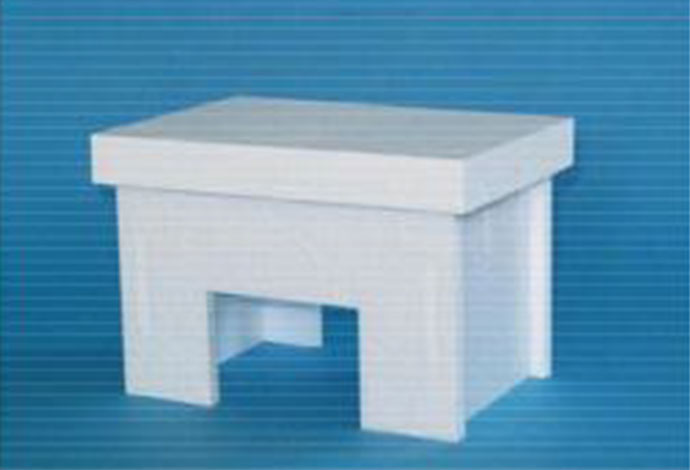

Low-Reflection Measurement Table

  • ･Made from expanded polypropylene
  • ･Maximum load capacity: Up to 100kg
  • ･Three standard sizes available*
  • *Custom sizes can be made upon request

Desktop Low-Profile EMI/EMC Turntable

Product Lineup
  • - 1500(W) x 1000(D) x 800(H) mm for Φ2.0m tables
  • - 1200(W) x 800(D) x 800(H) mm for Φ1.5m tables
  • - 1000(W) x 800(D) x 800(H) mm for Φ1.2m tables
  • *Please note that product specifications in this catalog may change without prior notice for improvement purposes.
  • *Actual product colors may vary slightly from printed materials. Replacement parts for maintenance will be available for at least 8 years after delivery.
