Economical CATR Solution

PRODUCTS

for Ka / V band

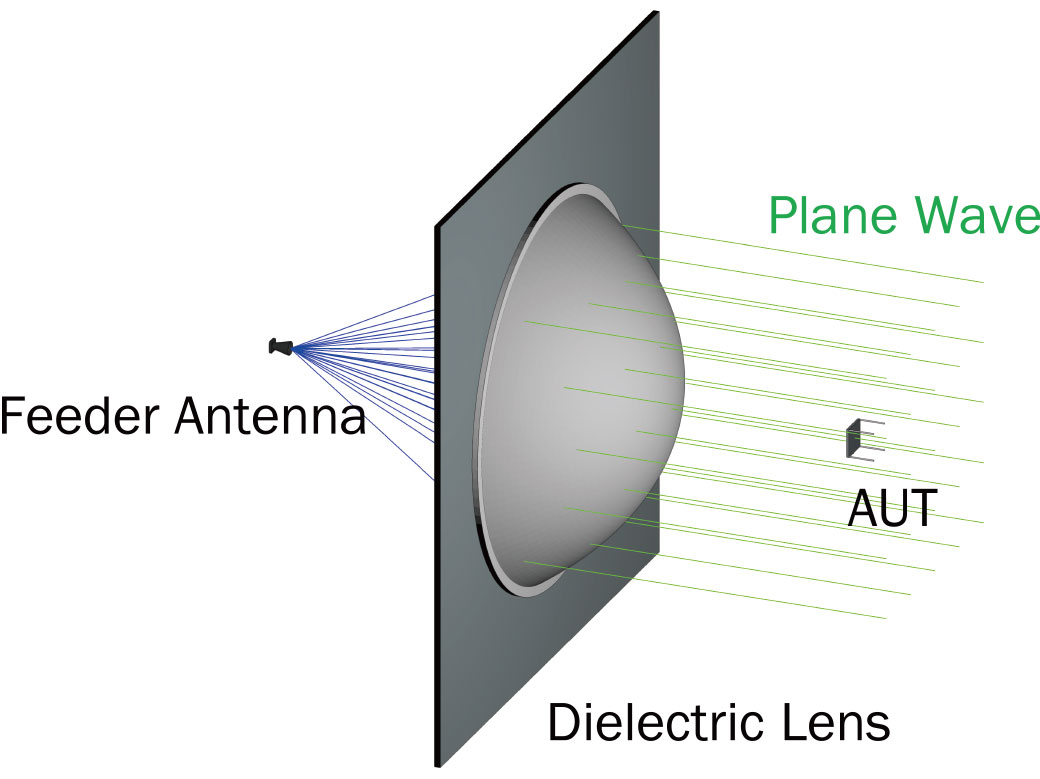

This economical CATR system integrates our patented dielectric lens technology with industry-leading chambers and positoners from MilliBox (USA). Specifically optimized for Ka and V-band applications, it offers a highly cost-effective solution without compromising on measurement accuracy.

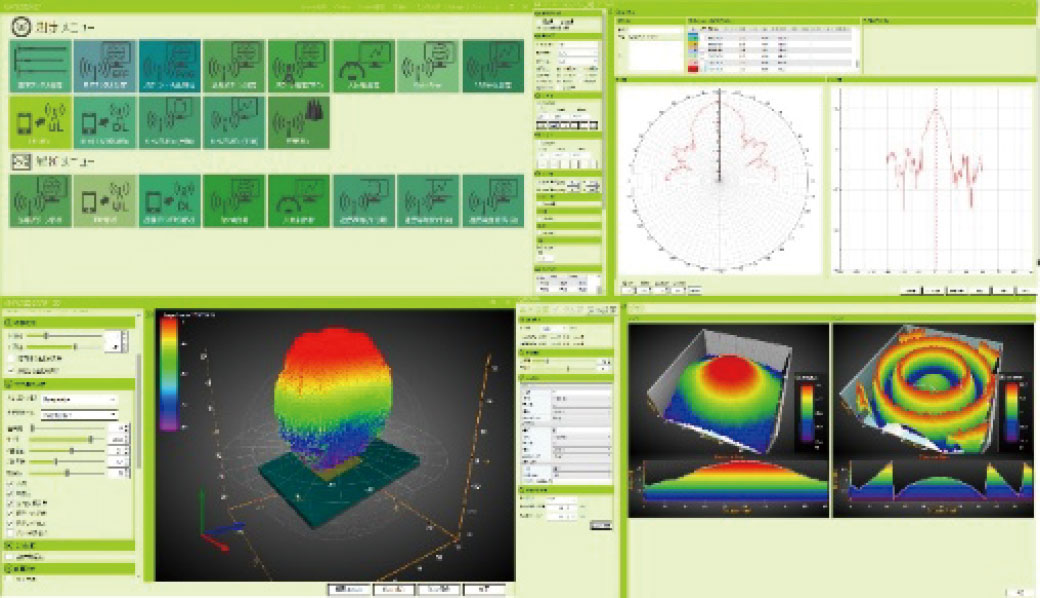

Fully compatible with our MATEOS.NET measurement software, the system provides seamless control over various VNAs, featuring robust data visualization and comprehensive analysis tools to streamline your RF testing workflow.

System Specifications

Specifications (Simulation Results)
Frequency Range		26.5GHz - 40GHz (P/N : CL01-MB) 50GHz - 75GHz (P/N : CL02-MB)
Feeder Antenna		Ka/V-Band Corrugated Horn Antenna
Lens Size		φ400mm
Quiet Zone (QZ)		Max: ±100mm at 30GHz and 60GHz
Measurement Distance		200mm (from the top of the Lens)

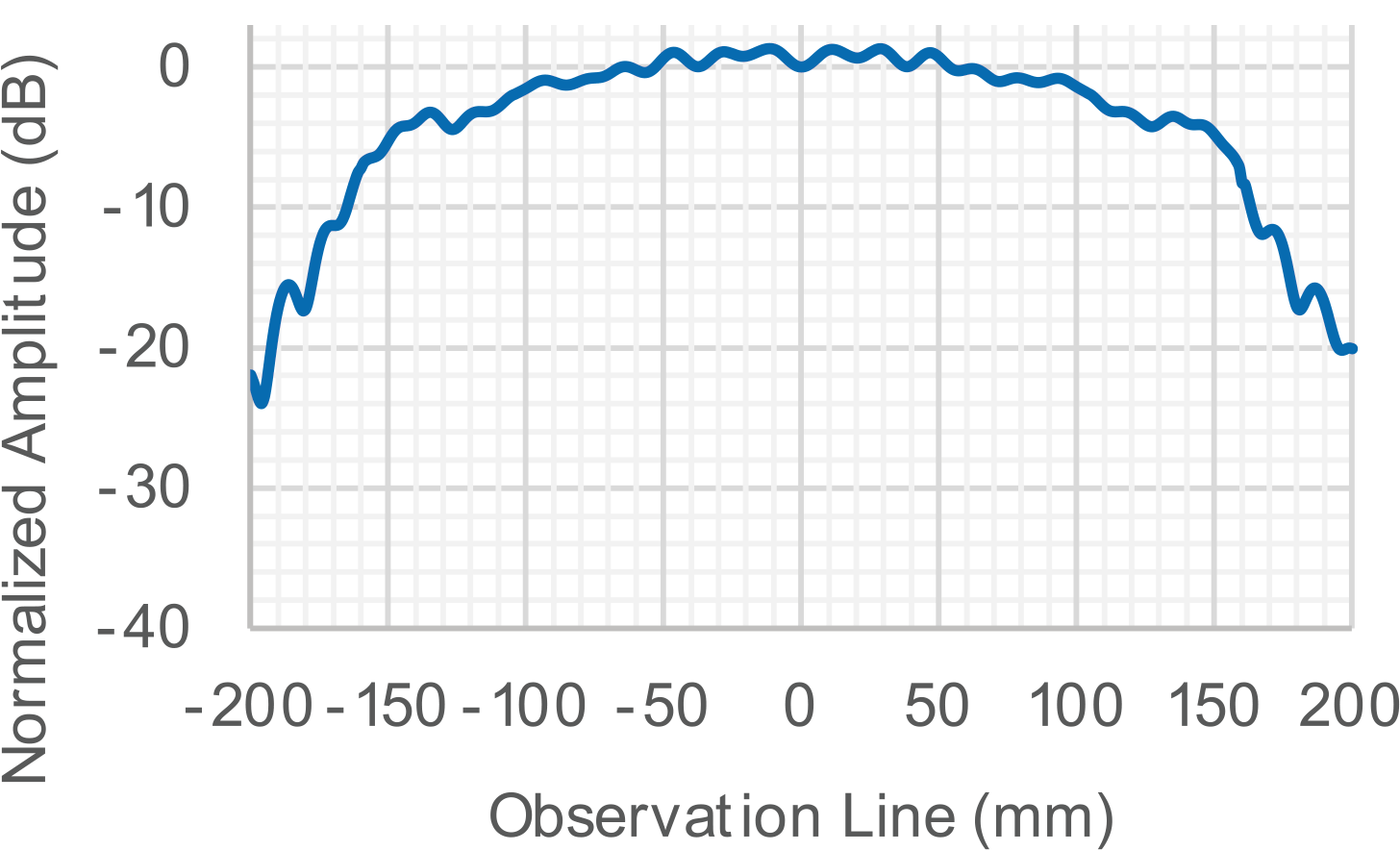

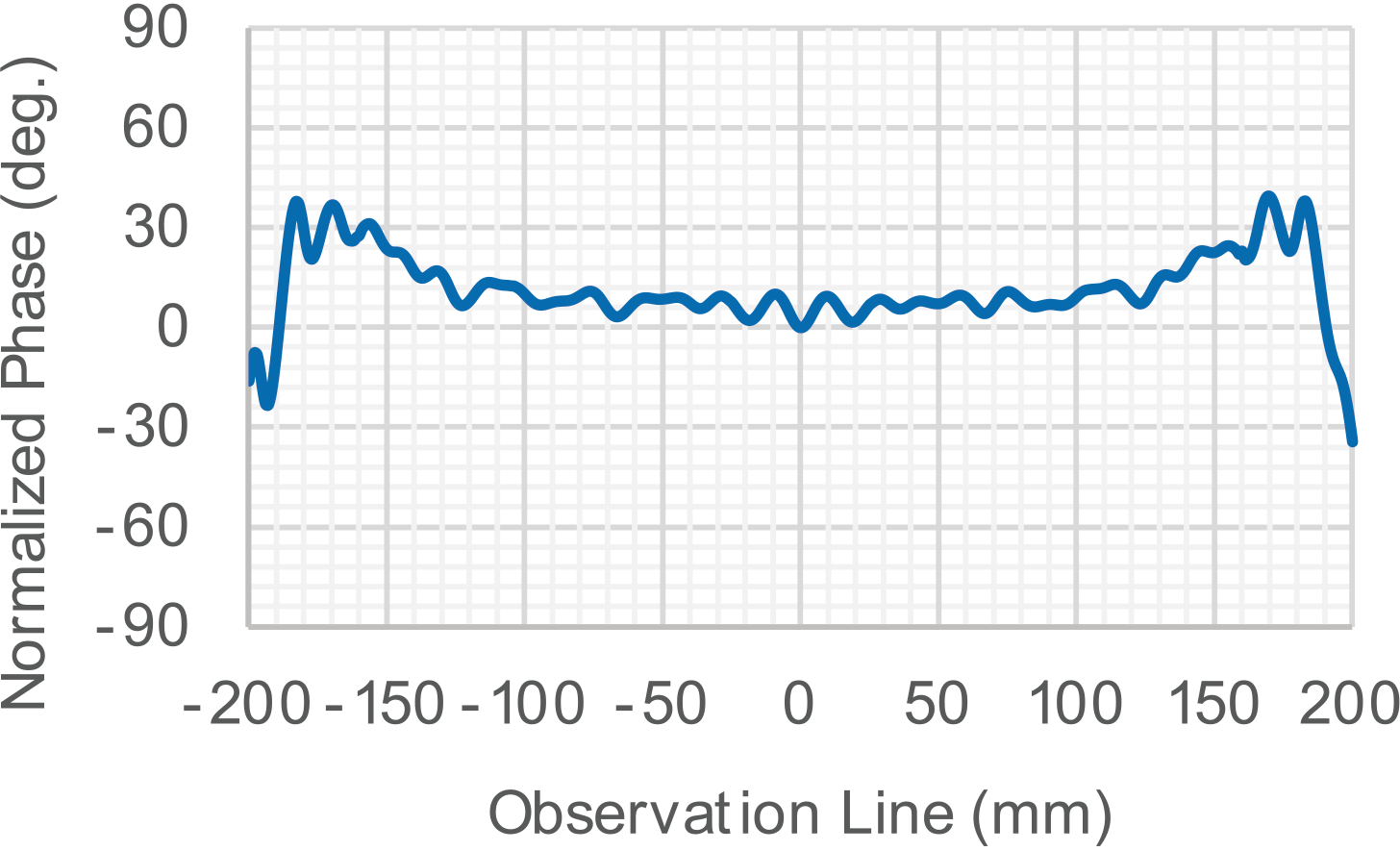

QZ Quality (Ka Band)	Range	±50mm	±65mm	±75mm	±100mm
	Phase	±5.1deg.		±5.5deg.
	Amplitude	±0.65dB	±0.85dB	±1.18dB	±1.42dB
Exterior Dimensions		128 x 98 x 66cm
Max AUT Size		160mm (width) and 50mm (depth)
Max AUT Weight		1kg
Standard Configuration		Anechoic Chamber 3D Positioner Feeder Antenna Fixture Dielectric Lens Feeder Antenna Automatic Measurement Software
