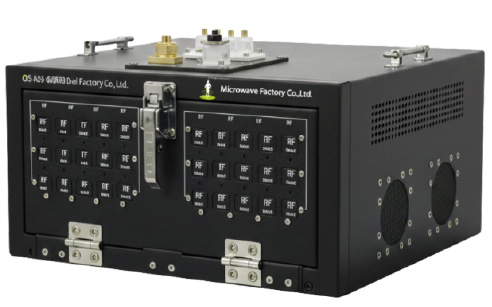

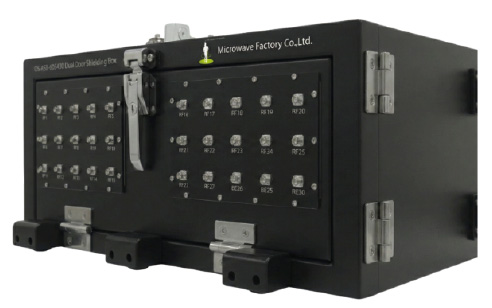

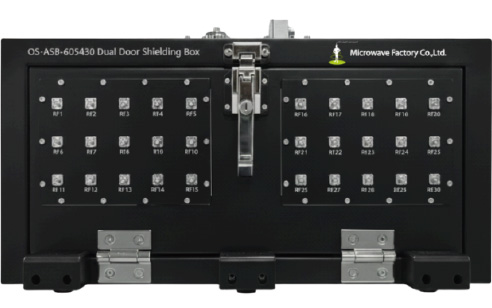

Dual Door RF Shielded Box Sub 8GHz

Dual door style box ideal for LTE, Wi-Fi and Bluetooth protcol testing.

External dimensions	W600 x D630 x H348 mm
Inner dimensions	W566 x D468 x H258 mm
Weight	37.5 kg
Front door stopper	･3 pcs, thickness is 5 cm, door open angle is 90 degrees ･Feet 4 pcs, at four corners of box bottom, height is 1 cm ･Lifting handle (folding), 2 pcs on top of the box ･DUT support plate inside box
Flat absorber inside	･Thickness 30 mm on the door, 10 mm on other side ･Color light blue ･Flame Retardant NRL 8093 (test 1, 2, 3) and DIN4102 B2

Working frequency	100 MHz - 8 GHz
Shielding Performance	60dB minimum

Temperature range on-site	25 +/- 5°C
Humidity	< 80 %

･Female SMA for RF connection (F2F externalthread), quantity: 30 pcs
･C Type USB 3.2 Gen 2, 20 Gbps maximum rate, quantity: 2 pcs
･DC Power socket for FAN power supply, quantity: 1 pc
･Power adapter, 1 pc - one end is two pin female connector and one end is Europlug
･Fiber Optic deedthrough with 6 holes 6 mm diameter, quantity: 1 pc
･Vent and Exhaust fan
･USB 3.2 Cables, Type C F2F, quantity: 2 pcs (0.8 m inside the box) and 2 pcs (2 m outside ofthe box)
･Banana Connector and 90 degree adaptor:
･2 pairs connectors inside box and 2 pairs outside of box
･4 pairs straight adaptors as accessories
･Exhaust fan (120 mm x 120 mm): 1 pc at right side panel
･Honeycomb Vent (120 mm x 120 mm): 2 pcs at right side panel and 2 pcs at left side panel
